The GEK series control cabinet realizes the start-stop control, status detection and protection of the generator set.
The GEK series control cabinets can be classified into single-machine control, AMF municipal power failure control, multi-machine parallel control cabinets and parallel control cabinets with the municipal power grid.
The GEK series control cabinet mainly serves to conduct comprehensive monitoring, protection and diagnosis of the generator set. The AMF control cabinet is equipped with functions such as mains power detection and automatic power switching. The parallel operation and grid connection control cabinet can achieve functions such as frequency/voltage adjustment, synchronous closing, and active and reactive load setting.
The GEK series head cabinet Model A adopts side-mounted or head cabinet bodies, is equipped with KomAI MRS/AMF controllers /IG parallel controllers, ABB brand or well-known domestic brand switches and other high-performance configurations.

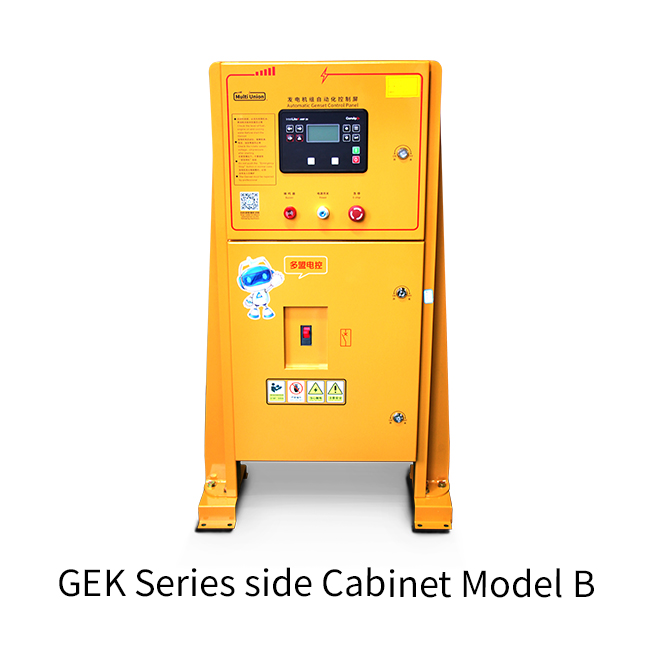

The GEK series head cabinet Model B adopts side-mounted or head cabinet bodies, is equipped with KomAI MRS/AMF controllers or IC/IG parallel controllers, and features high-performance configurations such as ABB brand or well-known domestic brand switches.

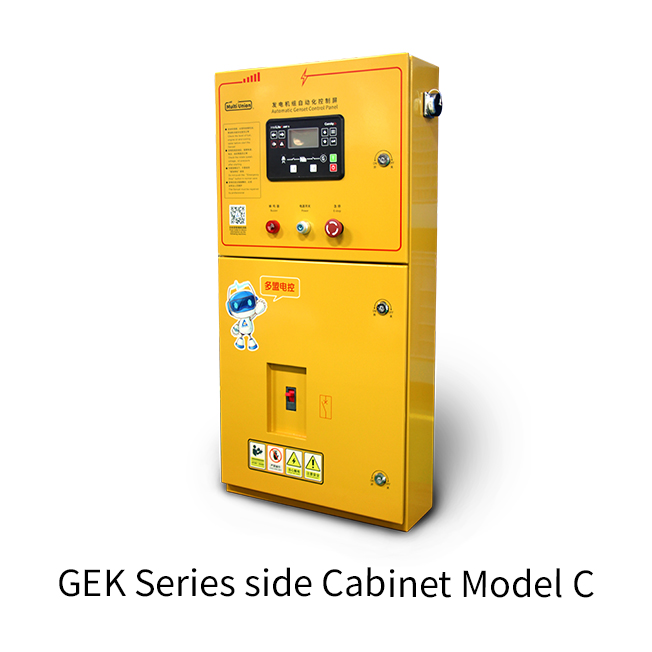

The GEK series head cabinet Model C adopts side-mounted or head cabinet bodies, is equipped with KomAI MRS/AMF controllers /IG parallel controllers, ABB brand or well-known domestic brand switches and other high-performance configurations.

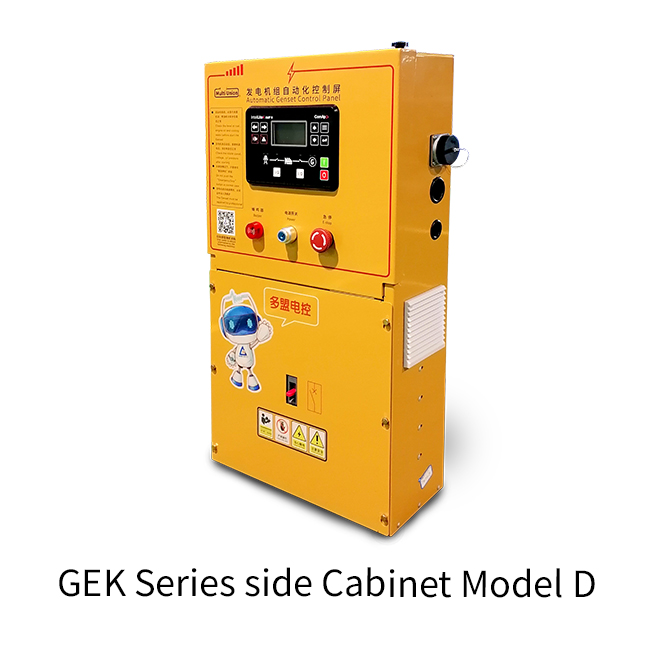

The GEK series side-type cabinet Model D adopts side-type or head-type cabinet bodies, KomAI MRS/AMF controllers /IG parallel controllers, ABB brand or well-known domestic brand switches and other high-performance configurations.
Small in size, produced on a standardized assembly line, with high product consistency and stable quality;
"UL lines are used to meet international standards;
The controller is fully certified as an original European import.
"High-standard surface treatment: powder coating;
The QR code information is printed on the panel and can be checked at any time without being lost.
The controller is multilingual compatible (including 22 languages such as Chinese, English, German, French, Greek, Finnish, etc.)
The electrical circuit is equipped with surge protection diodes;
The aviation plug is defined for each pin, with good universality and mutual control.
"Customized UV printing to highlight user characteristics;
It adopts aviation connectors, which are convenient for users to use on-site, with flexible configuration and reliability.
"Comai controller, off/manual/automatic/experimental mode selection;
The relay circuit is equipped with surge protection diodes;
The control cabinet is equipped with the MU318MC-HL control circuit board. The main advantages of the control circuit board are:
a) Universality of different control voltages: The integrated control board outputs 12V/24V, and the 12V/24V can be achieved by plugging and unplugging the relay
Replace;
b) Universality of different controllers: The relay coil can receive input signals of different polarities (positive pole input or negative pole input
(Extreme input), to meet the usage requirements of different models of controllers;
c) The integrated control board is coated with insulating varnish on both sides, featuring moisture-proof and anti-corrosion properties.
d) DC voltage range: 8-36V, rated working voltage: DC12V/24V;
e) The integrated control board is equipped with test buttons, which can be used for emergency activation or self-checking of the integrated control board in case of controller failure.
Detection of operating parameters of generator sets
"
Generator and three-phase voltage monitoring of the mains power supply
Generator three-phase current monitoring
Three-phase power monitoring of generators (active power, reactive power, electricity consumption and power factor)
Frequency monitoring
"速 速" 可 以 翻 译 为 "Rotational speed"
- Cooling water temperature and oil pressure
Battery voltage
Status indication
"
Working status
Fault alarm
Protection function
"
It has protection functions such as overvoltage/undervoltage, overfrequency/underfrequency, overload, overcurrent and short circuit
It features fault alarm protection functions such as ultra-low/low speed, oil pressure, water/oil temperature, battery voltage and start-up failure
Emergency shutdown
