The InteliLite4 series is a single-unit generator set controller specifically designed for backup and primary power supply applications.
The InteliLite4 series controllers are intuitive, flexible, easy to install and use, offering a variety of configuration options to create the best on-site and remote generator set control and monitoring solutions.
InteliLite4 AMF8 :
AMF mains power detection (MRS CAN be switched), USB, CAN, and analog input can all be connected to voltage/current/resistance sensors, speed sensors for detection, 7 inputs and 6 outputs, 3 analog channels, dual-frequency switching protection setting, historical record, timed on/off setting, multi-language, expandable, with a small number of built-in PLCS, and supports USB powerless setting.

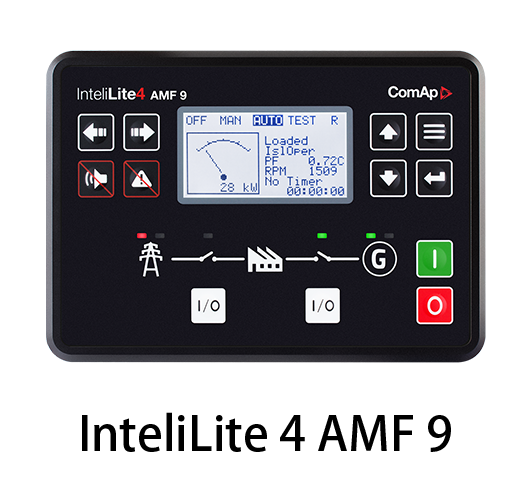

InteliLite4 AMF9 :
AMF mains power detection (MRS CAN be switched), USB, CAN, and analog input can all be connected to voltage/current/resistance sensors, speed sensors for detection, 9 inputs and 8 outputs, 3 analog channels, dual-frequency switching protection setting, historical record, timed on/off setting, multi-language, expandable, with a small number of built-in PLCS, and supports USB powerless setting.

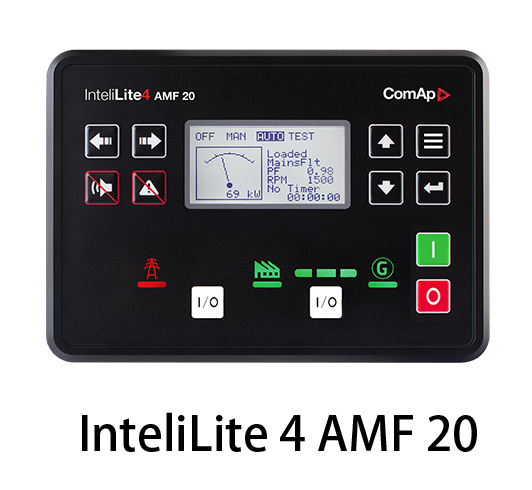

InteliLite4 AMF20 :
AMF mains power detection (MRS Switchable), CAN, dual USB interfaces (1 channel can be copied and set), 3 analog channels, analog input can all be connected to voltage/current/resistance sensors, speed sensors, 7 inputs and 6 outputs, dual-frequency switching protection setting, historical record, multi-language, dual expansion, built-in PLC, supports USB power-free setting.

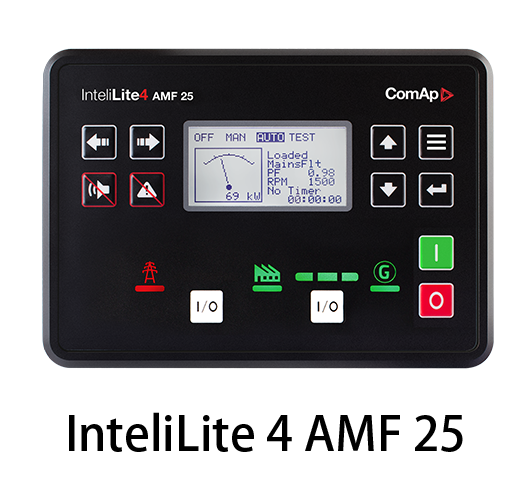

InteliLite4 AMF25 :
AMF mains power detection (MRS Switchable), CAN, dual USB interfaces (1 channel can be copied and set), built-in RS485, analog input can all be connected to voltage/current/resistance sensors, speed sensors, 9 inputs and 8 outputs, 4 analog channels, dual-frequency switching protection setting, historical record, multi-language, dual expansion, built-in PLC, supports USB without power supply Settings.

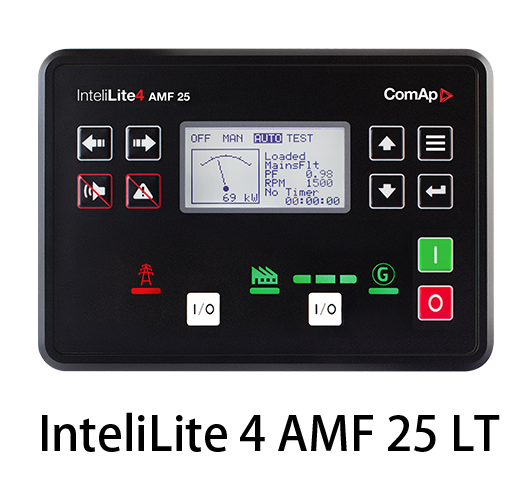

InteliLite4 AMF25 :
Based on IL4-AMF25, a low-temperature version of -40 ° C to +70 ° C is added.

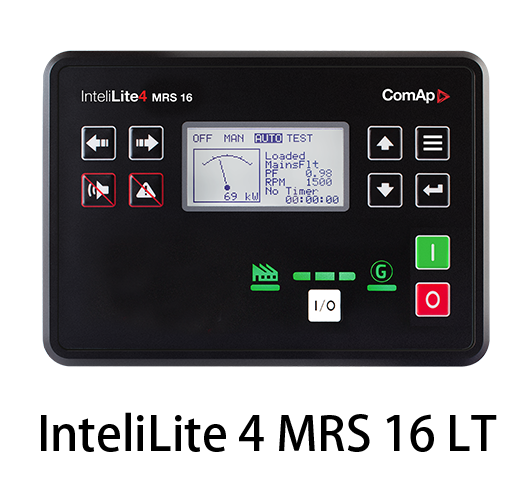

InteliLite4 MRS16 :
Self-starting, CAN, dual USB interfaces (1 channel can be copied and set), built-in RS485, analog input can all be connected to voltage/current/resistance sensors, speed sensors, 9 inputs and 8 outputs, 4 analog channels, dual-frequency switching protection setting, historical record, multi-language, dual expansion, built-in PLC, supports USB power-free setting.

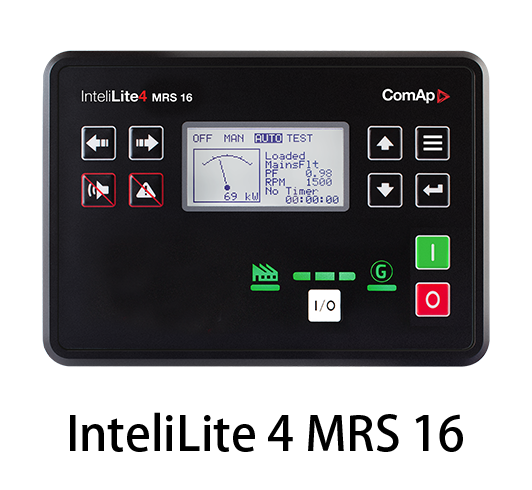

InteliLite4 MRS16 LT :
Based on IL4-MRS16, a low-temperature version ranging from -40 ° C to +70 ° C is added.
